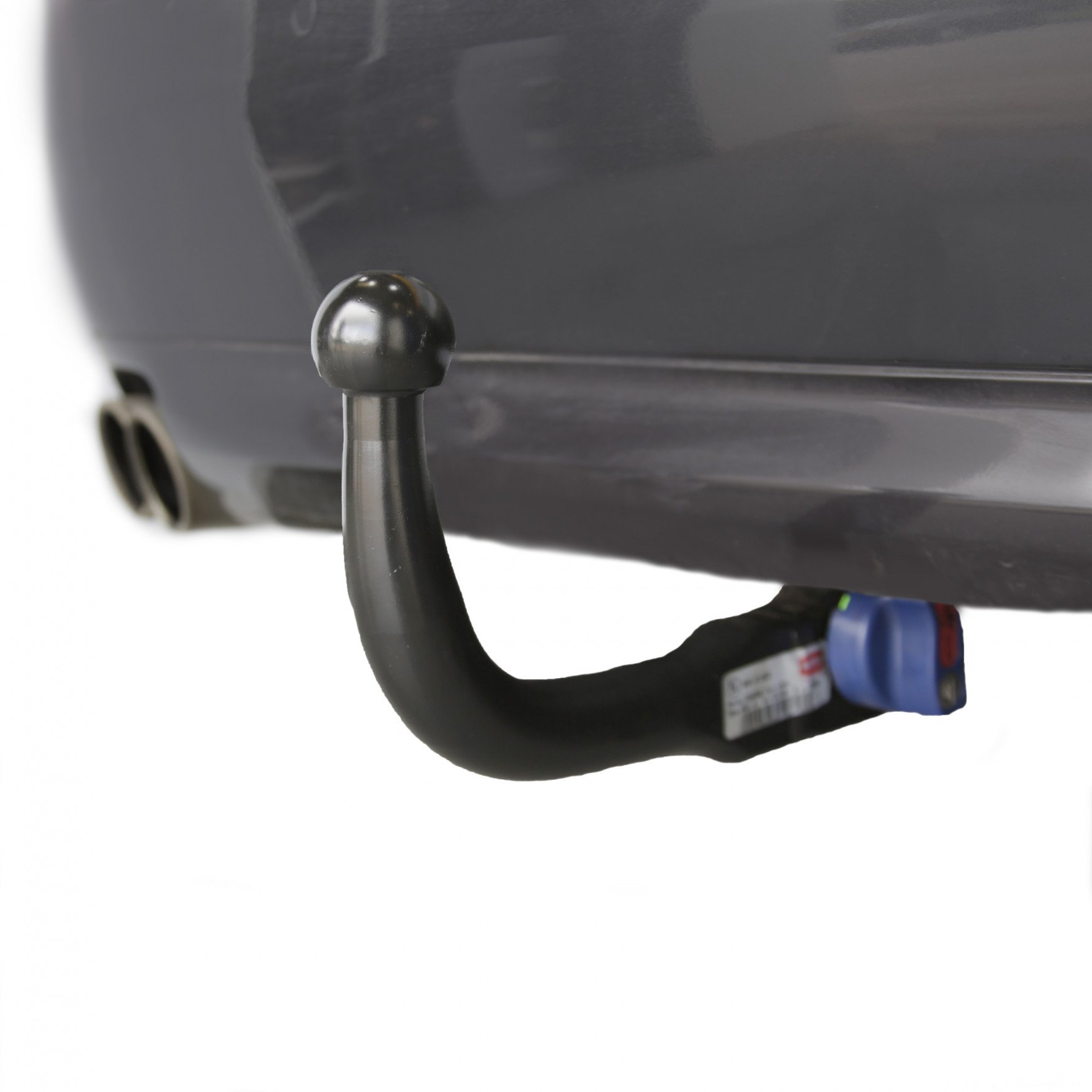

Witter Detachable Swan Neck Towbar (vertical loading)
Product Code: F182Q- Nose Load [kg] - 90
- Towed Weight [kg] - 1800
- Towbar system - Witter Detachable Swan Neck Towbar (vertical loading)
- Bumper cut-out - Invisible cut-out
- FREE UK Delivery
- Out of Stock
| PDF link fitting instruction | https://tz.witter-towbars.co.uk/uMedia/FittingInstructions/F182Q.pdf |
| Nose Load [kg] | 90 |
| Towed Weight [kg] | 1800 |
| Drilling required? | No |
| Ball height laded [in mm] | 420 |
| Ball height unladed [in mm] | 450 |
| Towbar system | Witter Detachable Swan Neck Towbar (vertical loading) |
| Test Mark | 55R-01/06 11491 |
| Bumper cut Dimension [in mm] | 85 x 210 |
| Mounting Time up to [min] | 60 |
| KIT | No |
| Do I need to order a towball? | Yes |
| Bumper cut-out | Invisible cut-out |
| D-Value [kN] | 9.5 |
| Bumper removal requirement | Yes |
| Mounting Time from (minutes) | 30 |
| Weight [kg] | 23.5 |
| not for trim level | ST |
| Siarr part number | F182Q |
13 Pins Wiring Kit Vehicle-specific
You will need a 13-pin Vehicle Specific Electrics kit for towing a caravan because it provides all of the legal lighting requirements for towing, as well as powering the electrics inside your caravan. Most caravans, manufactured after January 2009, will have 13-pin electrics and will also connect to your reverse lights whilst providing a full power supply inside your caravan.
What can a 13-pin electric socket power?
- Left indicator
- Right indicator
- Taillights
- Fog lights
- Brake lights
- Reverse lights
- Caravan electrics (inside)
*Our dedicated wiring kits synchronise perfectly with your car’s electrical system and, depending on how sophisticated your car is, turn signal failure could also be activated by your vehicle’s warning system. You might need a software update to activate additional benefits and safety features. You may need to pay an additional fee for the software update.
- Out of Stock
7 Pins Wiring Kit Vehicle-specific
If you are towing a basic trailer, bike rack** or have a lighting board attached to whatever you are towing, a 7-pin electrics kit will support all of your basic needs. A 7-pin Vehicle Specific Single Electrics kit provides all of the basic legal lighting requirements for towing and synchronises perfectly with your car.
What can a 7-pin electric socket power?
- Left indicator
- Right indicator
- Taillights
- Fog lights
- Brake lights
*Because our electric kits are specific to your vehicle, you might need a software update to activate additional benefits and safety features which you may need to pay more for.
**Some bike racks require a 13-pin plug so bear this in mind when choosing your electrical kit.
- Out of Stock
I've already purchased a wiring kit
If you've already purchased a matching wiring kit, then please select this option. It is a legal requirement to have a wiring kit installed when using a towbar. Failure to install a matching wiring kit can lead to a £5000 fine and six points on your licence.
Important! This product is vehicle specific but you have not selected your vehicle. Please select your vehicle to ensure it is compatible.
