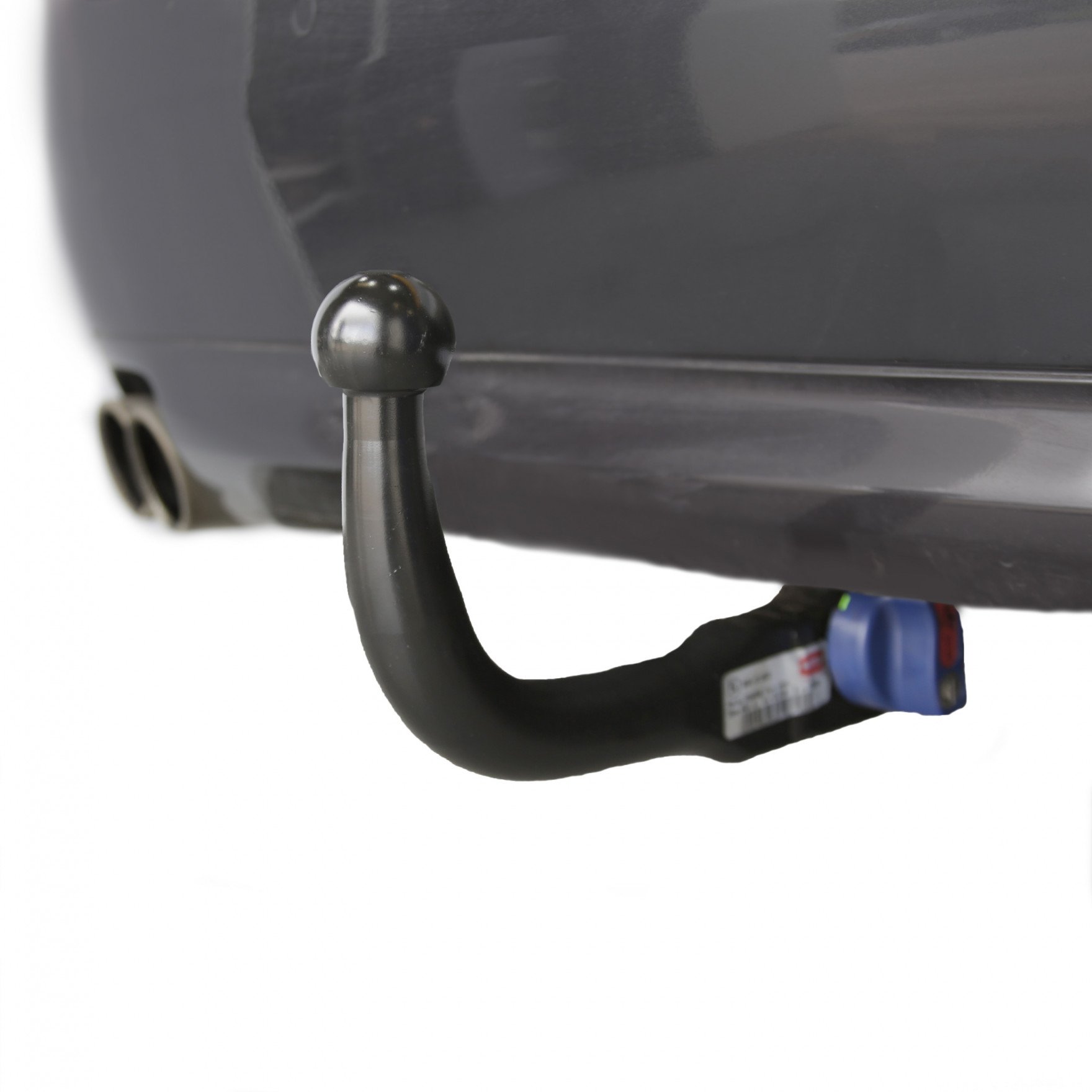

Witter Detachable Swan Neck Towbar (vertical loading)
Product Code: CH26Q- Towbar system - Witter Detachable Swan Neck Towbar (vertical loading)
- Towed Weight [kg] - 3500
- Nose Load [kg] - 170
- Bumper cut-out - No cut-out
- FREE UK Delivery
- Out of Stock
| Ball height laded [in mm] | 420 |
| Towbar system | Witter Detachable Swan Neck Towbar (vertical loading) |
| Mounting Time up to [min] | 60 |
| D-Value [kN] | 15.1 |
| Do I need to order a towball? | No |
| KIT | No |
| Mounting Time from (minutes) | 30 |
| Towed Weight [kg] | 3500 |
| Bumper removal requirement | No |
| Nose Load [kg] | 170 |
| Ball height unladed [in mm] | 450 |
| Test Mark | 55R-01/06 11673 |
| Drilling required? | No |
| Bumper cut-out | No cut-out |
| Weight [kg] | 10.7 |
| PDF link fitting instruction | https://tz.witter-towbars.co.uk/uMedia/FittingInstructions/CH26Q.pdf |
7 Pins Wiring Kit Universal
Universal electrics are compatible with all vehicles and provide legal lighting requirements, but the functionality is limited. Because newer cars have sophisticated electrical systems, a universal wiring kit cannot support complex safety functions, and you would also need a towbar wiring bypass relay. However, if you have an old car with limited electrical functions, a universal wiring kit would work fine.
What can a 7-pin electric socket power?
- Left indicator
- Right indicator
- Taillights
- Fog lights
- Brake lights
*Because our electric kits are specific to your vehicle, you might need a software update to activate additional benefits and safety features which you may need to pay more for.
**Some bike racks require a 13-pin plug so bear this in mind when choosing your electrical kit.
- Out of Stock
I've already purchased a wiring kit
If you've already purchased a matching wiring kit, then please select this option. It is a legal requirement to have a wiring kit installed when using a towbar. Failure to install a matching wiring kit can lead to a £5000 fine and six points on your licence.
Important! This product is vehicle specific but you have not selected your vehicle. Please select your vehicle to ensure it is compatible.
